The Capacitive Couplers 01 and 02 are intended for coupling a modulation type signal to the conductor of a medium voltage distribution line. In particular they are optimized to the coupling of carrier frequency signals to the conductor of the distribution line.
The Capacitive Couplers CMC 01 and 02 are designed for indoor and outdoor installation and support single phase to neutral coupling and phase-to-phase coupling.

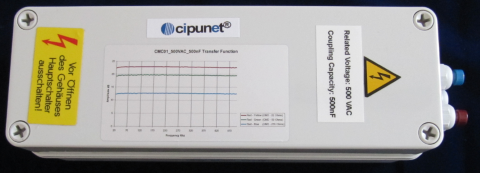

CMC 01

CMC01 is designed for use up to 1kVAC phase to phase whereas CMC02 is for use up to 3kVAC phase to phase

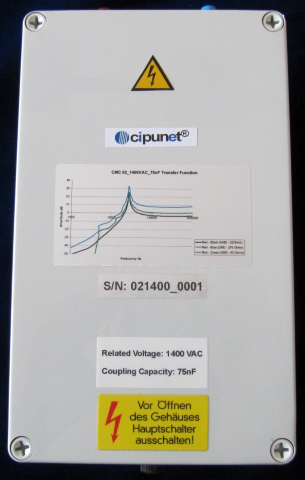

CMC 02
