Multi-Standard Powerline Modem CMM1000

Transparent Medium-/High Voltage Powerline Modem

The CMM1000 is a power line modem-gateway mainly used to communicate via:

  • Medium voltage cables and overhead lines.
  • Offshore Rigs.
  • Subsea and Downhole installations.
  • Gold and Diamond mines.

It is able to communicate via several interfaces in parallel, incorporating:

  • RJ45.
  • RS-232.
  • RS-485 2-wire.
  • RS-485 4-wire.

Using OFDM modulation with a variable channel separation, the modem can work in the CENELEC A, B, BC, the FCC or ARIB range between 30 kHz and 482 kHz.
Every modem has an unique MAC and a configurable IP address and can be individually configured via network and the user has a huge range of configuration possibilities starting from frequency range towards output power.
The system provides intrinsic information about current consumption and board temperature (current, minimum, maximum).

For bigger systems Cipunet® provides a specially designed network management software assisting the operator in his task.



Modulation36 – 91 kHz Cenelec A98 – 121 kHz Cenelec -B98 – 137 kHz Cenelec BC131 – 445 kHz ARIB145 – 478 kHz FCC
ROBO 4.39 Kbits/sec 1.52 Kbits/sec 2.56 Kbits/sec 20.0 Kbits/sec 21.8 Kbits/sec
DBPSK 13.8 Kbits/sec 6.8 Kbits/sec 10.6 Kbits/sec 46.6 Kbits/sec 46.0 Kbits/sec
DQPSK 21.4 Kbits/sec 11.5 Kbits/sec 17.1 Kbits/sec 55.0 Kbits/sec 55.4 Kbits/sec
D8PSK 25.5 Kbits/sec 15.0 Kbits/sec 21.3 Kbits/sec 58.8 Kbits/sec 61.0 Kbits/sec
Real payload per modulation/frequency


One dedicated network can handle up to 250 clients in total. A client can be a modem or a dedicated user. The total number of networks is limited by the available IP addresses only.

The CMM1000 is designed for the operation with external couplers and it is available in three different versions:

CMM100_DIN_Rail
  • CMM1000 DIN Rail Version
    • DIN Rail ready to mount
    • Power supply: 18-36VDC
    • Dimensions: 110x162mm
    • Weight: aprox. 250g

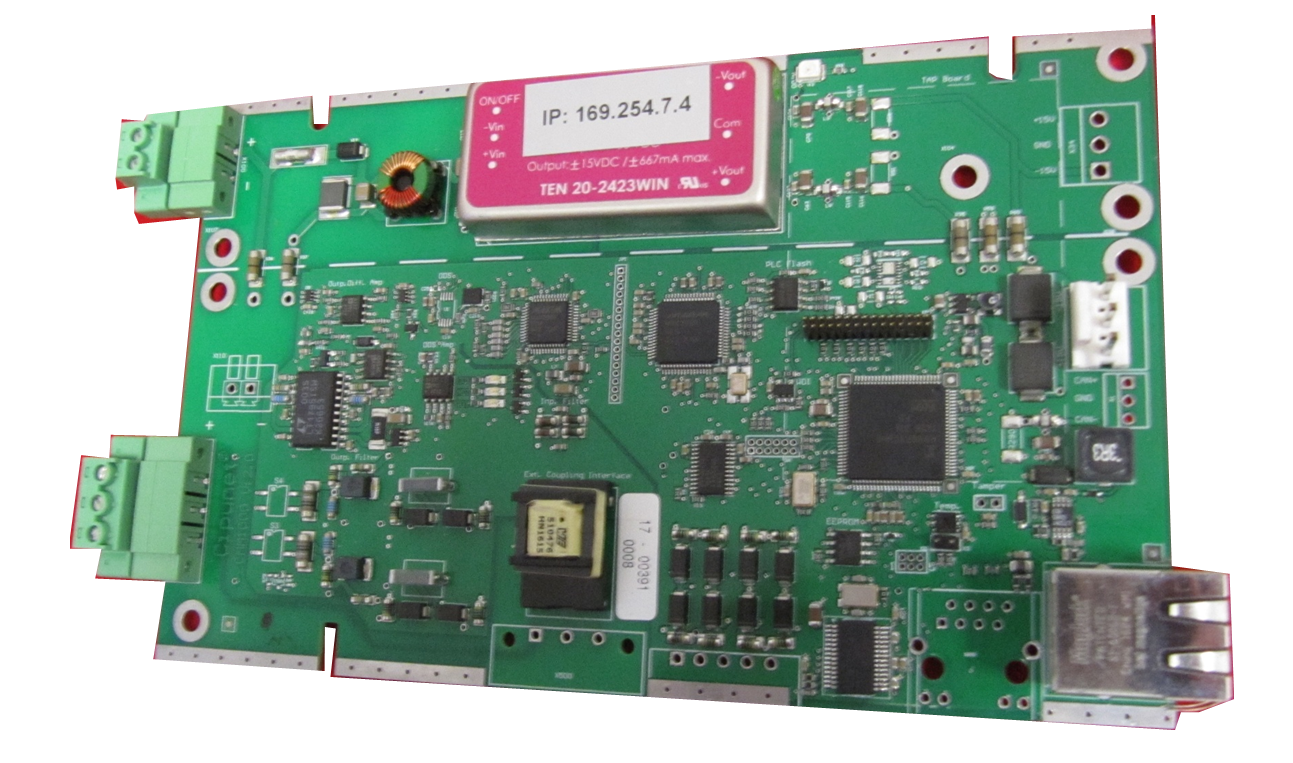

CMM100_Rack
  • CMM1000 DIN Rack Version
    • Designed for rack mounting
    • Power supply: 18-36VDC
    • Dimensions: 100x160mm
    • Weight: aprox. 120g

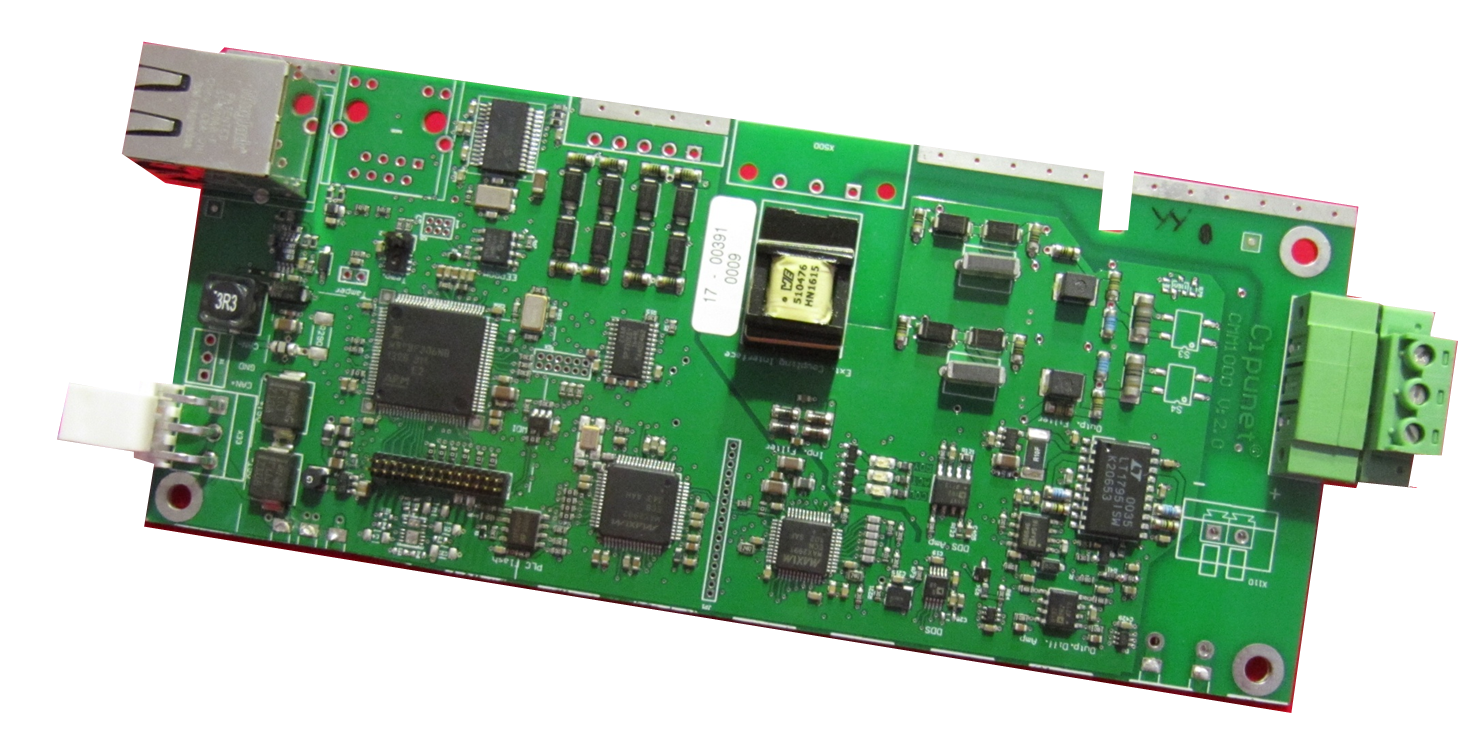

CMM100_Downhole
  • CMM1000 Downhole Version
    • Compact size
    • Suitable for downhole applications
    • Power supply: ±15VDC
    • Dimensions : 65x160mm
    • Weight: aprox. 80g
