PLC Measurement Tool

Cipunet® offers a comprehensive range of measurement equipment for narrowband- and broadband power line communications. The tool-set is a collection of tools and equipment required to do communication measurements over all types of energized and de-energized electrical conductors. The tool is optimised to support site surveys and field measurements prior or in parallel to installations. Due to its small dimensions and very reasonable costs it presents a perfect aid to evaluate, install and optimise new and existing installations.

The tool uses a windows based computer running a signal analysis software and an external data acquisition card in combination with a special designed signal generator.



Features

Signal generator with sweep signal (10-500KHz) , pseudo noise signal with PN-Length of 1023 and direct coupling (Mains signal 230V). generator

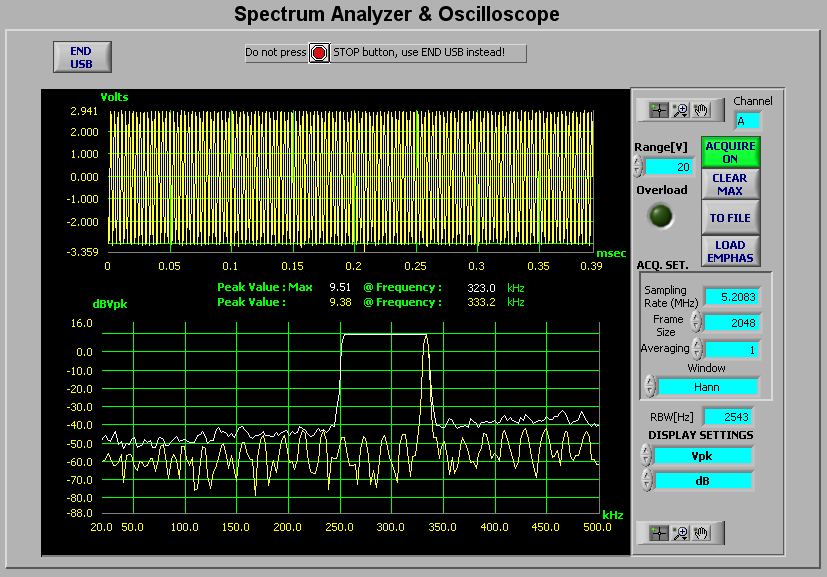

Spectrum analyser with maximum hold function. Spectrum Analyzer
Two channel oscilloscope. Oscilloscope

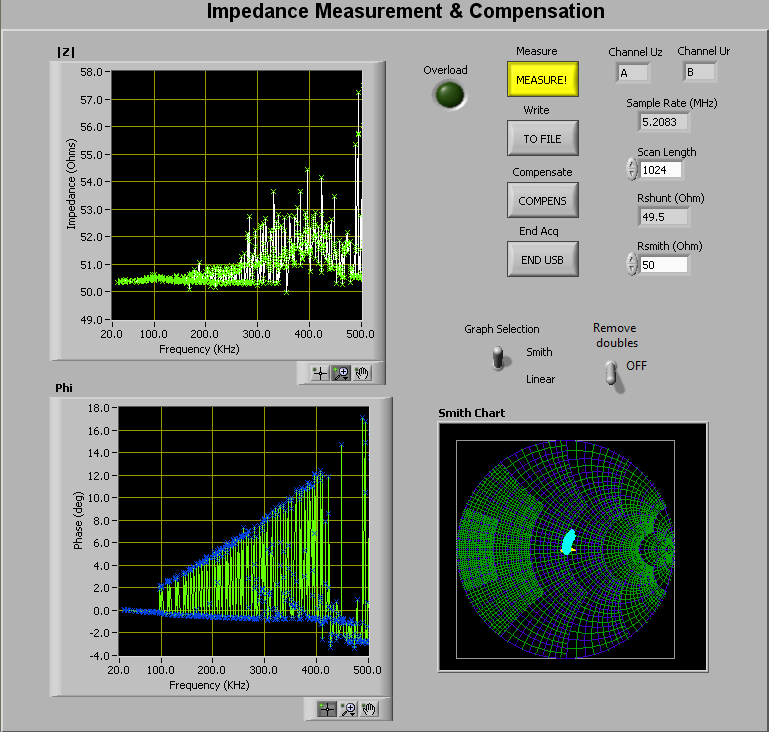

Vector impedance and complex transfer analyser. Impedance
Signal monitor with repeated acquisition Acquire Signals

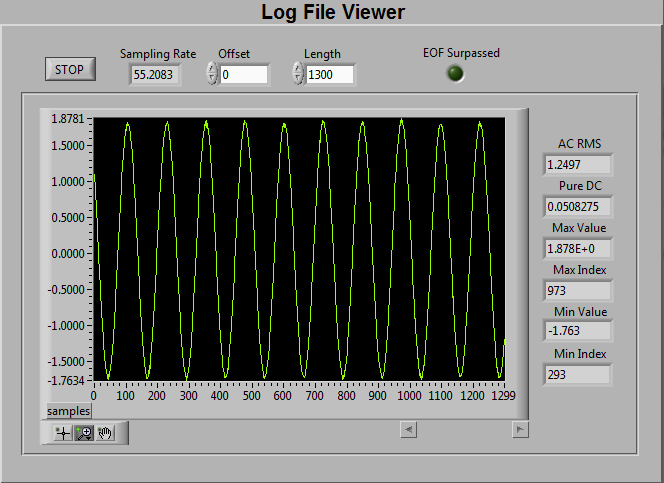

Log file viewer to read and display the files saved from signal monitor. log file viewer

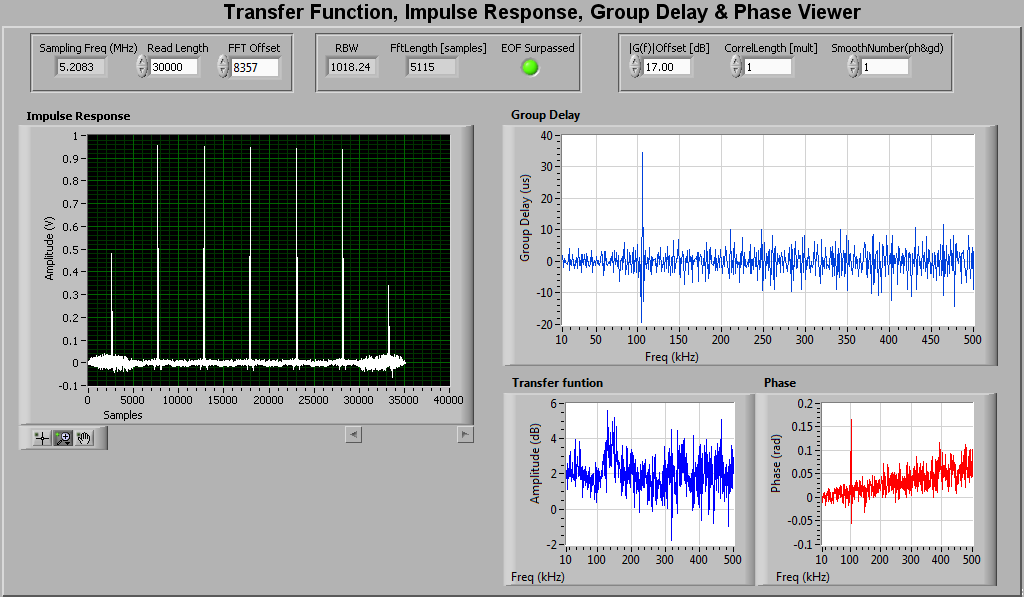

Transfer function, impulse response, group delay and phase viewer. impulse

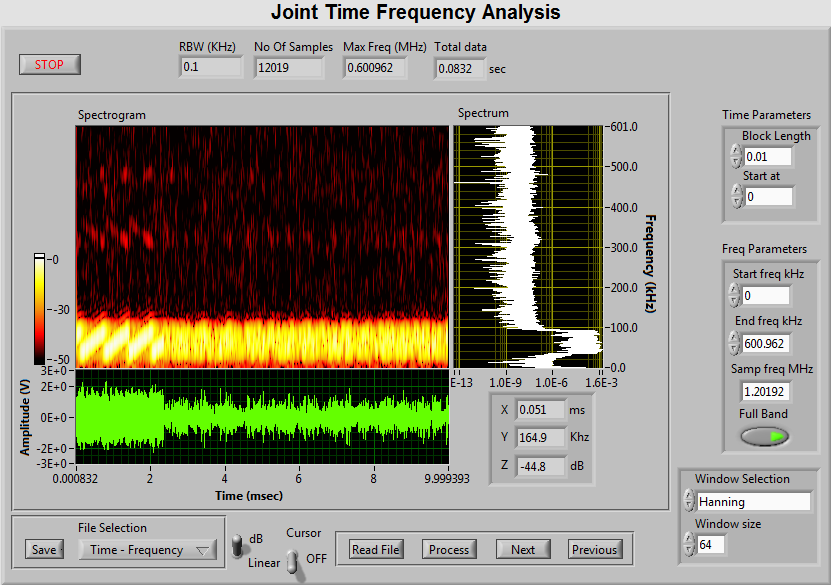

Joint time frequency analysis. jtfa
